LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling

Hubei Xinyanmei Supply Chain Management Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling

machinery capacity : 1000BPH

application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, lighter gas filling machine

packaging type : CANS, Bottles, lighter gas filling machine

packaging material : Wood, lighter gas filling machine

automatic grade : Semi-automatic

driven type : Pneumatic

voltage : 220V/380V

place of origin : China

brand name : Kinetic

dimension(l*w*h) : 1000*590*1000mm

warranty : 1 Year

key selling points : Easy to Operate

filling material : Water, Oil

filling accuracy : ±0.03Mpa

machinery test report : Provided

video outgoing-inspection : Provided

core components : motor

Product name : Aerosol filling machine

Production capacity : 3000-4000cans/day

Air consumption : 1.0(m3/min)

Max Gas volume(ml) : 100-1000ml

Gas filling accuracy : ±0.03Mpa

Working Pressure : 0.65-1.0Mpa

Applicable aerosol can diameter : 35-80mm

Applicable aerosol can height : 80-350mm

Applicable Gas : Oxygen, compressed air, nitrogen, CO2 (Oil-free)

Function : canned air filling

After Warranty Service : Online support

Local Service Location : None

After-sales Service Provided : Online support, Video technical support

Type : Filling Machine

Showroom Location : None

Condition : New

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, lighter gas filling machine

Certification : CE ISO

Weight : 380 KG

Packaging Details : Standard wooden case for aerosol filling machine
Low Price Spray Cartridge LPG Gas / Butane Gas Filling Machine

Port : Shanghai

Supply Ability : 100 Set/Sets per Month cooking lpg gas cylinder filling machine

Price : CN¥37,572.08-54,190.50/sets

Contact Now

Product Description

Butane gas/LPG gas refilling machine consists of three units: vacuuming(pneumatic vacuum generator) + crimping + one or two gas fillers. We could design them in one working table or two separate working tables, double aeration system is optional to improve efficiency.
Butane gas refilling equipment is pneumatic, using the compressed air as power, no electricity, safe, reliable, and widely used for filling butane gas cartridge alp cooker, cassette gas and mini cooker filling .

LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
Features

160DB butane gas cartridge filling machine

This equipment is pneumatic, uses the compressed air as power, no electricity, safe, reliable, and widely used for filling butane gas cartridge alp cooker, cassette gas and mini cooker filling

We design 1 vacuum and 1 crimping on one table , the 2 gases fillers in one table. For our experience, the vacuum and crimp speed will faster than gas filler, “double gas filling system” can improve the production rate.


LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
Detailed Images
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling

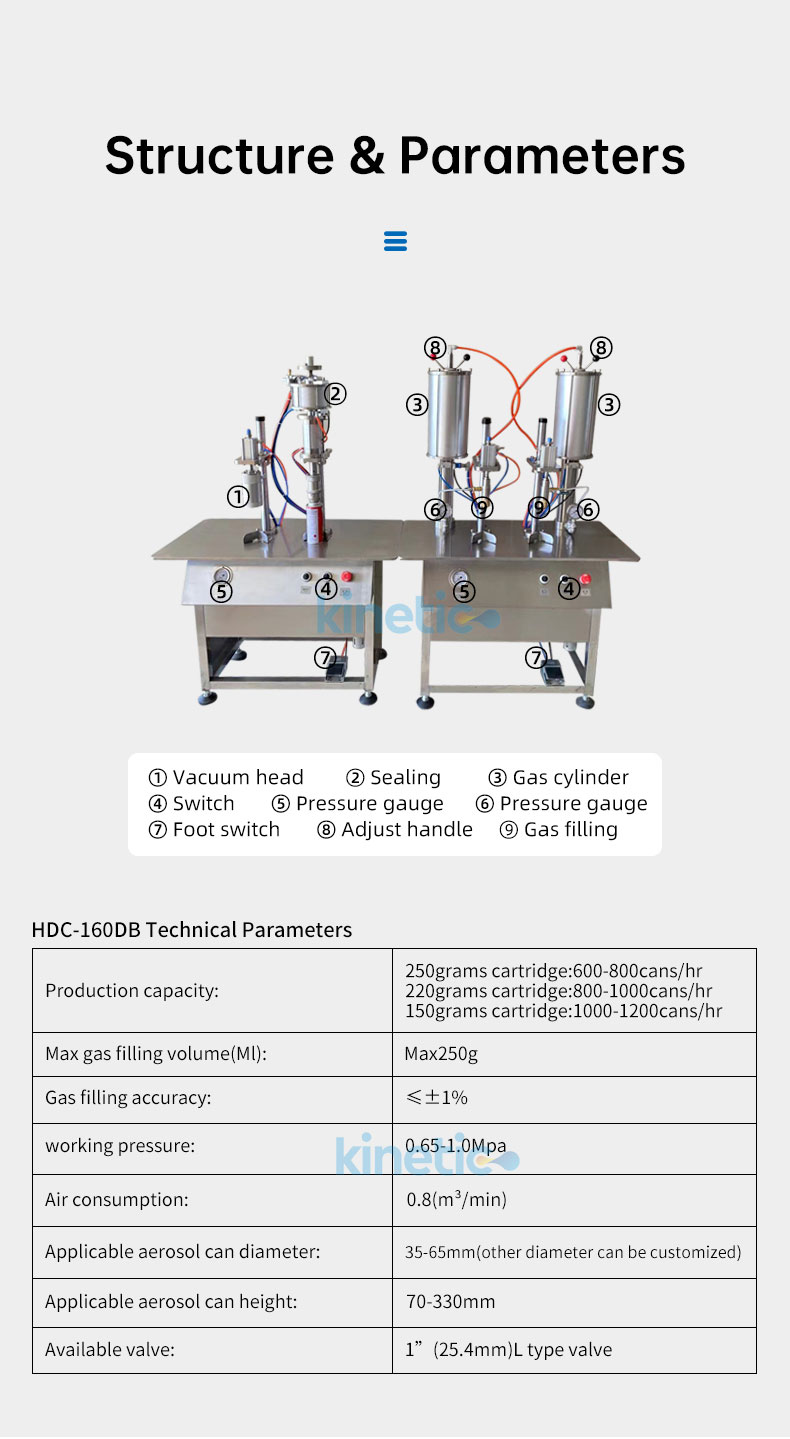

Technical Parameter
Production capacity
3000-5000cans/day
Air consumption
0.8 m³/min
Max Gas volume
Max 500ml
Applicable aerosol can diameter
35-65mm
Gas filling accuracy
≤±1%
Applicable aerosol can height
70-330mm
Working Pressure
0.65-1.0Mpa
Available valve
1”(25.4mm) gas stove valve
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
Product Application

This machine is dedicated to fill various kinds of cassette can, refrigerant can and altitude gas can, widely used in catering, hotel and outdoor travel, etc. Butane gas refilling equipment has small-occupied area and simple operation, belongs to economical aerosol production equipment.And a water-bath leak detector is optional to ensure safety.

LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
Our Services
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
Working & Delivery
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
Company Profile
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling
LPG Gas Cylinder Filling Machine/ Semi Automatic Filling Machine / WD40 Aerosol Filling Machine for and Accurate Filling

FAQ


1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we will regard your inquiry priority.

2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample , as long as you afford the express freight.

3) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed

4) Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.

5)Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.


6)How do you determine the price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
